Products Selection

Current Product Lists

For full product e-catalogue please download from HERE

Product

Series (Ref. Name)
  • BSC (23F Relay)
  • BSVR (19F, 4078 Relay)
  • BSZ5 (21F, 4100 Relay)
  • BSZ6 (T81, 4101 Relay)
  • BJ (32F, T77 Relay)
  • BJS (46F Relay)
  • BJH (33F Relay)
  • BRD (T73, 3FF Relay)
  • BRF (152F Relay)
  • BRU (21FF Relay)
  • BRT1 (115F Relay)
  • BRT2 (EMI-2P Relay)
  • BRT3 (EZ, RT Relay)
  • BSA1 (36F Relay)
  • BSA2 (42F Relay)
  • BPD (7520 Relay)
  • BPC (12FF Relay)
  • BPM1 (OMI Relay)
  • BPM2 (845 Relay)
  • BPM3 (OZ, 14FW Relay)
  • BPMF (62F Relay)
  • BPMK (25F Relay)
  • BPH/P (102F Relay)
  • BT90 (T90 Relay)
  • BT91 (T91, 832 Relay)
  • BT92 (T92, 852 Relay)
  • BAE (13F Relay)
  • BAET (18FF Relay)
  • BD (T78 Relay)
  • BAM10/11 (HFV4 Relay)
  • BAL10/11
  • BMC-60A Latching
  • BMC-80A Latching
  • BMC-100A Latching

Capacity

Max Current in Bold.
  • 2A 125VAC / 24VDC
  • 1A 125VAC / 30VDC
  • 1A 125VAC / 24VDC
  • 3A 125VAC / 24VDC
  • 10A 125VAC, 5A 30VDC
  • 5A 250VAC
  • 10A 125, 5A 250VAC
  • 15A 125, 12A 250VAC
  • 20A 125, 17A 250VAC
  • 20A 125, 10A 30VDC
  • 12A 250VAC
  • 8A 250VAC
  • 16A 250VAC
  • 10A 250VAC / 30VDC
  • 5A 240VAC / 30VDC
  • 16A 250, 15A 125VAC
  • 10A 250VAC
  • 10A 250VAC / 30VDC
  • 5A 250VAC / 30VDC
  • 16A 250VAC / 30VDC
  • 20A 250VAC
  • 16A 250VAC / 30VDC
  • 20A 277VAC, 2HP 240
  • 30A 250VAC
  • 30A 250VAC
  • 30A 250VAC
  • 15A 250VAC / 30VDC
  • 7A 250VAC / 30VDC
  • 20A 14VDC
  • 40A 14VDC
  • 30A 14VDC
  • 60A 250VAC
  • 80A 250VAC
  • 100A 250VAC

Coil Power

Default in Bold.
  • 0.15W, 0.2W
  • 0.15W, 0.2W, 0.36W
  • 0.2W, 0.36W, 0.45W
  • 0.2W, 0.36W, 0.45W
  • 0.2W, 0.45W
  • 0.2W
  • 0.2W, 0.4W
  • 0.36W, 0.45W
  • 0.36W
  • 0.36W, 0.45W
  • 0.25W, 0.4W
  • 0.25W, 0.4W
  • 0.25W, 0.4W
  • 0.25W, 0.54W
  • 0.54W
  • 0.2W
  • 0.36W, 0.45W
  • 0.54W, 0.72W
  • 0.54W, 0.72W
  • 0.54W, 0.72W
  • 0.54W, 0.72W
  • 0.54W
  • 0.9W
  • 0.9W
  • 0.9W
  • 0.9W
  • 0.9W/1.2VA
  • 0.9W/1.2VA
  • 0.3W, 0.6W
  • 1.6W
  • 1.44W, 1.8W
  • 1.0W
  • 1.0W
  • 1.0W

Dimension

L x W x H in (mm)s
  • 12.4 x 7.6 x 10
  • 20.1 x 10 x 12
  • 15.5 x 10.5 x 11.2
  • 15.5 x 10.5 x 11.2
  • 18.2 x 10.2 x 15
  • 20.5 x 7 x 15
  • 20 x 10 x 15.2
  • 19 x 15.4 x 15
  • 21 x 16 x 20.6
  • 20 x 16.4 x 20.2
  • 29 x 12.7 x 15.5
  • 29 x 12.7 x 15.5
  • 29 x 12.7 x 15.5
  • 24 x 10 x 25
  • 24.2 x 12.9 x 24.8
  • 23 x 16.2 x 10.2
  • 18.4 x 15.2 x 10.2
  • 29.3 x 12.8 x 20.4
  • 29.3 x 12.8 x 20.4
  • 29.3 x 12.8 x 20.4
  • 29 x 12.6 x 24.5
  • 22.8 x 12.3 x 25
  • 30.5 x 16 x 23.5
  • 31.9 x 27.5 x 19.5
  • 29.3 x 12.8 x 20.4
  • 29.3 x 12.8 x 20.4
  • 28 x 21.5 x 35
  • 28 x 21.5 x 35
  • 15.5 x 12.1 x 13.8
  • 28.3 x 28.3 x 25.5
  • 28.3 x 28.3 x 25.5
  • 27.7 x 23 x 29.3
  • 27.7 x 23 x 29.3
  • 27.7 x 23 x 29.3

Approval

CQC, ROHS, REACH
  • -
  • -
  • N/A
  • N/A
  • UL, TUV
  • -
  • UL, TUV
  • UL, TUV
  • UL, TUV
  • -
  • UL, TUV
  • UL, TUV
  • UL, TUV
  • UL
  • -
  • UL, TUV
  • -
  • UL, TUV
  • UL, TUV
  • UL, TUV
  • -
  • N/A
  • -
  • UL, TUV
  • UL, TUV
  • UL, TUV
  • N/A
  • N/A
  • N/A
  • N/A
  • N/A
  • N/A
  • N/A
  • N/A

Download

Datasheet in .pdf

For products that are discontinued, please contact our staff for replacement.

Current Product Images

For full product e-catalogue please download from HERE

Signal Relay

Max Current < 5A
  • N/A

Power Relay

Max Current < 15A

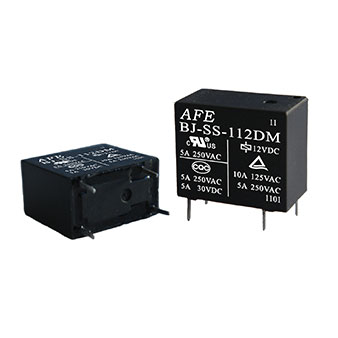

  • AFE BJ Relay Thumbnail
  • BJ 10Amp 1A, 1C

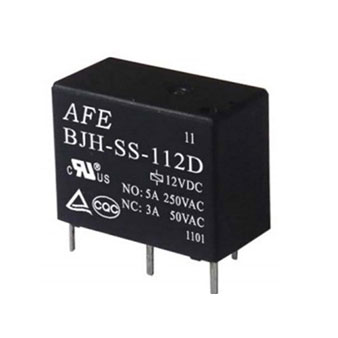

  • AFE BJH Relay Thumbnail
  • BJH 10Amp 1A, 1B, 1C
  • AFE BRD Relay Thumbnail
  • BRD 15Amp 1A, 1B, 1C

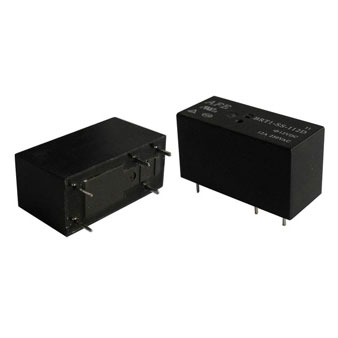

  • AFE BRT1 Relay Thumbnail
  • BRT1 12Amp 1A, 1B, 1C

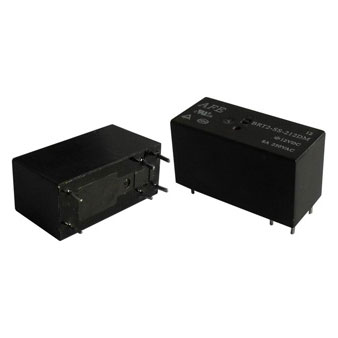

  • AFE BRT2 Relay Thumbnail
  • BRT2 8Amp 2A, 2B, 2C

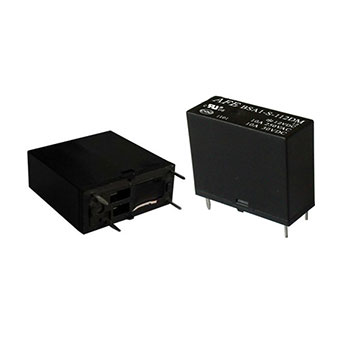

  • AFE BSA1 Relay Thumbnail
  • BSA1 10Amp 1A, 1B, 1C

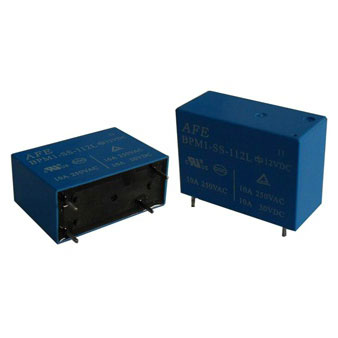

  • AFE BPM1 Relay Thumbnail
  • BPM1 10Amp 1A, 1B, 1C

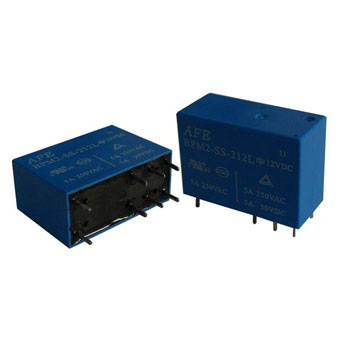

  • AFE BPM2 Relay Thumbnail
  • BPM2 5Amp 2A, 2B, 2C

Power Relay

Max Current > 15A

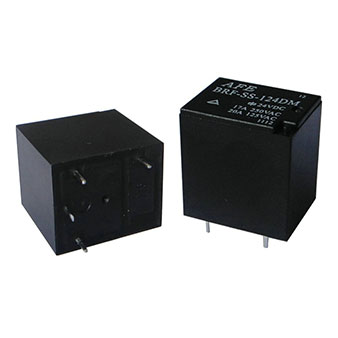

  • AFE BRF Relay Thumbnail
  • BRF 20Amp 1A, 1B, 1C

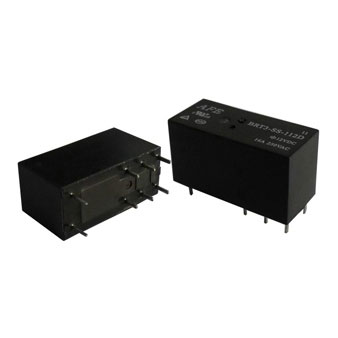

  • AFE BRT3 Relay Thumbnail
  • BRT3 16Amp 1A, 1B, 1C

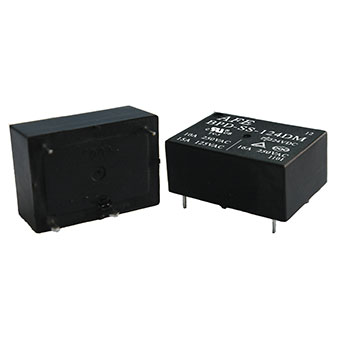

  • AFE BPD Relay Thumbnail
  • BPD 16Amp 1A

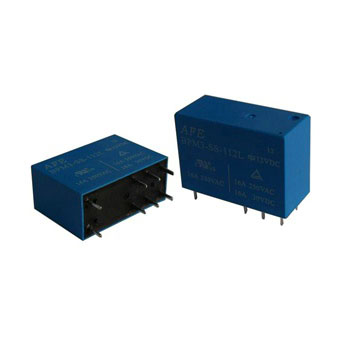

  • AFE BPM3 Relay Thumbnail
  • BPM3 16Amp 1A, 1B, 1C

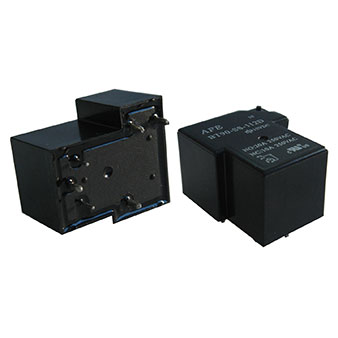

  • AFE BT90 Relay Thumbnail
  • BT90 30Amp 1A, 1B, 1C

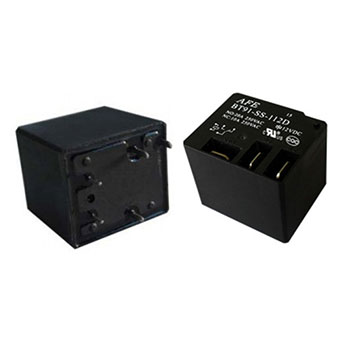

  • AFE BT91 Relay Thumbnail
  • BT91 30Amp 1A, 1B, 1C

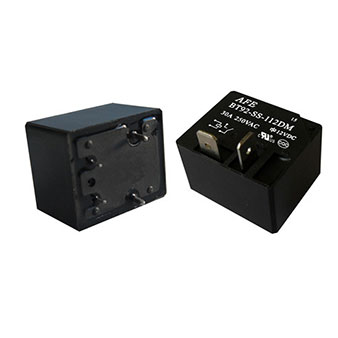

  • AFE BT92 Relay Thumbnail
  • BT92 30Amp 1A, 1B, 1C

Automotive & Latching

High Power Type

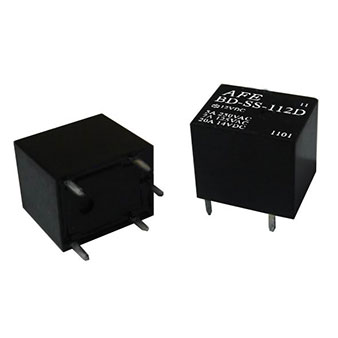

  • AFE BD Relay Thumbnail
  • BD 20Amp 1A, 1B, 1C

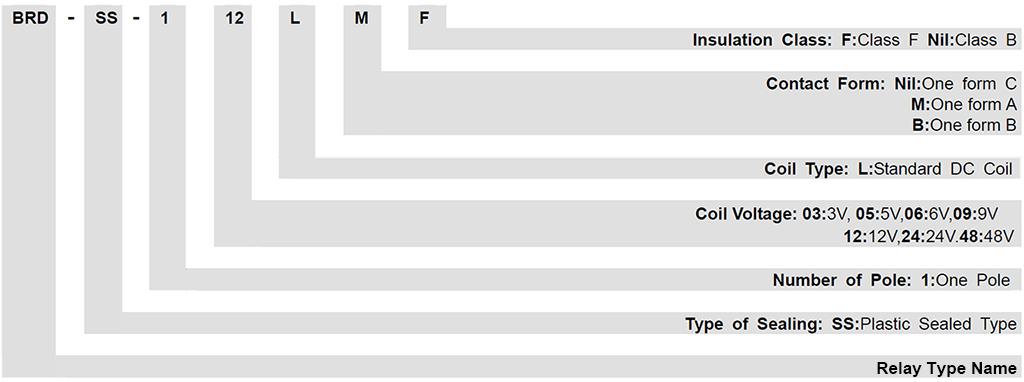

Ordering Information

For example, BRD-SS-112LMF is BRD series Sealed Type SPST 12v Coil Voltage, 0.36W Class F Insulation Relay.
